​FORM & FUNCTION

Expression of Truth and Beauty

This project explores the analysis and transformation of existing prototypes based on new functions.  The use of conceptual combinations, convergent diagrams and divergent solutions in generating ideas are incorporated. An existing bridge is combined with a household item and a new moveable bridge that allows a 30’ x 40’ opening for the passage of watercrafts is created.

SPAN PROTOTYPES


TYNE BRIDGE

Attraction-Chaotianmen-Bridge-Photo-01_e

CHAOTIAMEN BRIDGE


RAVANEL BRIDGE


MOVEMENT ANALOGIES

CORKSCREW

corkscrew_schematic_by_googlemeister_d5a
Screenshot 2020-10-31 000317.jpg
Screenshot 2020-10-31 000334.jpg

OTTOMAN HINGE

Screenshot 2020-10-31 002204.jpg
Screenshot 2020-10-31 015646.jpg

ROTATING WAFFLE IRON

Annotation 2020-09-16 021347.jpg
Screenshot 2020-10-31 011830.jpg
Screenshot 2020-10-31 011412.jpg

CONCEPTUAL COMBINATIONS

Screenshot 2020-10-31 004958.jpg
Attraction-Chaotianmen-Bridge-Photo-01_e

PRELIMINARY DESIGN

Screenshot 2020-10-31 042716.jpg
Screenshot 2020-10-31 042650.jpg
Screenshot 2020-10-31 042741.jpg

MECHANISM

Screenshot 2020-11-04 215707.jpg
Screenshot 2020-11-04 215104.jpg
Screenshot 2020-11-04 215344.jpg

FINAL DESIGN

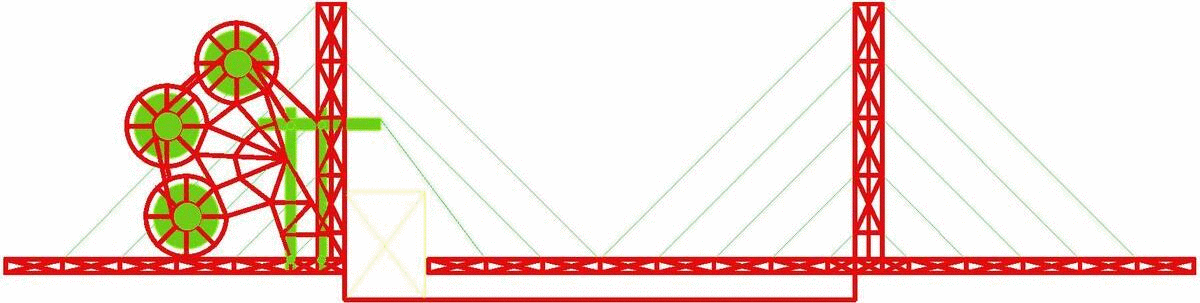

ELEVATION VIEWS

Screenshot 2020-11-04 225140.jpg
Screenshot 2020-11-04 225422.jpg
Screenshot 2020-11-04 225324.jpg
Screenshot 2020-11-04 225238.jpg

3D VIEWS

Screenshot 2020-11-04 125924.jpg
Screenshot 2020-11-04 231848.jpg
Screenshot 2020-11-04 230909.jpg

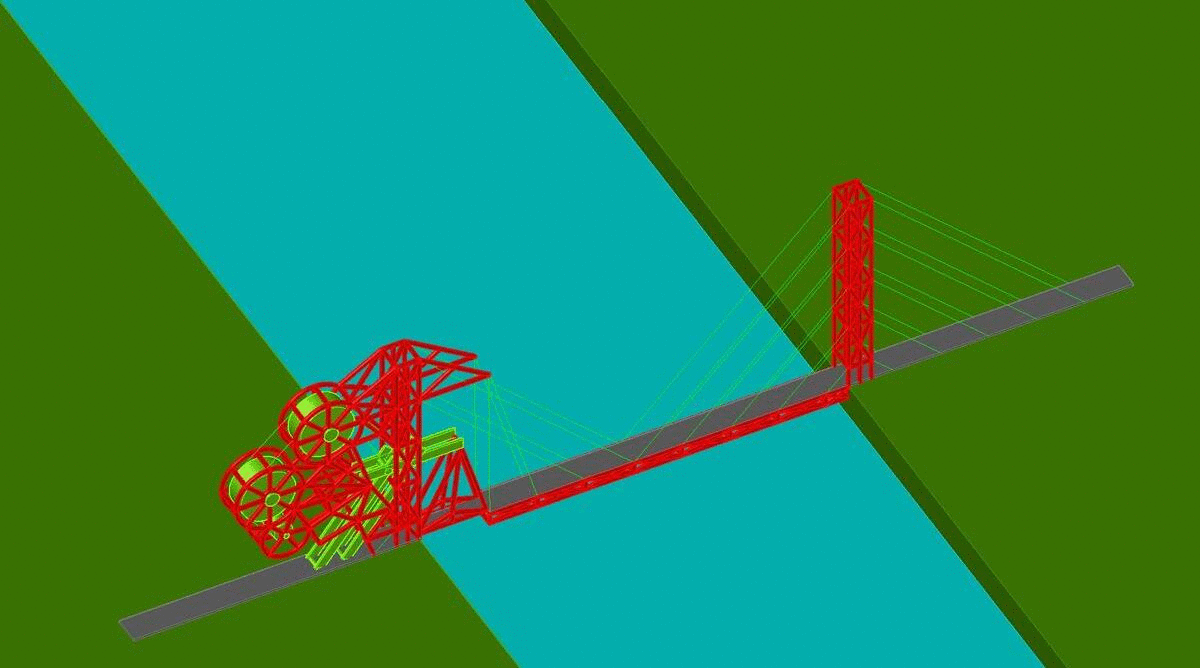

FINAL ANIMATION

ezgif.com-gif-maker (1).gif
