CONTEXTUAL FIT

Analysis and Design of Adding On

This project explores the diagrammatic analysis of existing systems and patterns the idea of integrated fit into an existing order that also highlights new patterns and values. The use of metaphors and analogies are used to strengthen design ideas and express cultural values.

Screenshot 2020-11-09 002456.jpg

We have been commissioned by the Smith Family to design an addition to their house on the shore of Long Island Sound.  Originally designed by Richard Meier in 1965, the Smith family house has been widely published and is known internationally.

​

​

Unfortunately, the Owner's needs have changed since the original design, thereby warranting this architectural intervention. The Owner specifically request that the integrity of the original design be respected, yet the new addition should have its own presence.

Narrative

The Smiths fell deeply in love with steel pan music on their  vacation to the Caribbean. They started a new  tradition in which each family member would learn to play the steel pan. Music became their new pastime and main bonding activity. The new addition to their house will be a music room where they come together and develop their musical talents.


Hierarchy

Screenshot 2020-11-18 120539.jpg
Screenshot%202020-11-18%20120539_edited.

Function

Screenshot 2020-11-18 130206.jpg

Original Floor Plans

Screenshot 2020-11-25 051939.png

Contextual Analysis

Screenshot 2020-11-18 114030.jpg

Preliminary Designs

Screenshot 2020-11-25 011139.png
Screenshot 2020-11-25 010950.png
Screenshot 2020-11-25 012054.png

Final Design Floor Plans

Final Design 3D Views


Final Design Elevation Views


South


North


East


West

Final Design Section Views

2D Sections

Screenshot 2020-12-03 235952.png
Screenshot 2020-12-04 000002.png
Screenshot 2020-12-04 000002.png

3D Sections

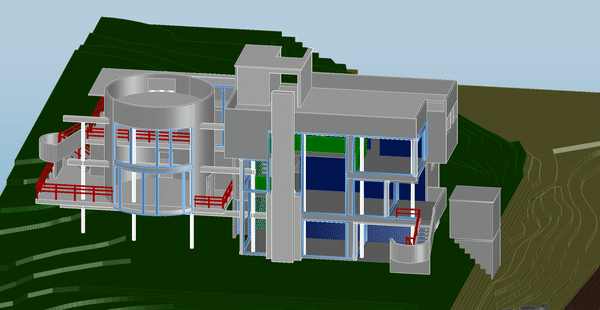

Final Design Animation

ezgif.com-gif-maker (3).gif
